Nitrided Barrel

Home / Products / Barrels / Nitrided Barrel

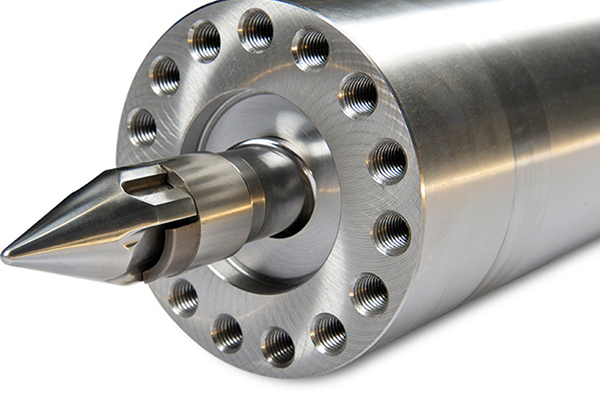

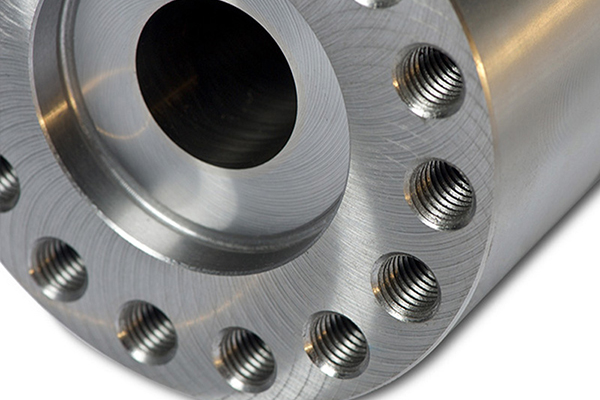

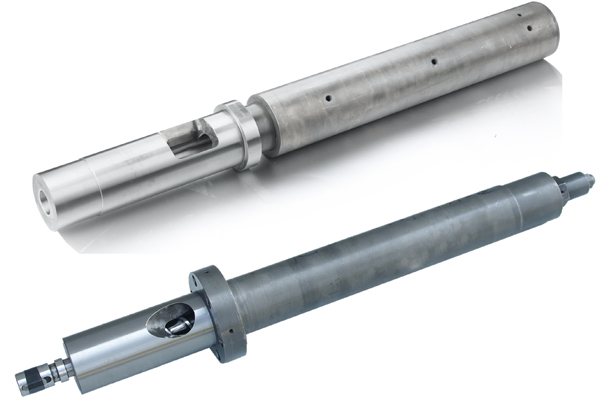

Nitrided Barrel

Nitrided Barrel

Advantages

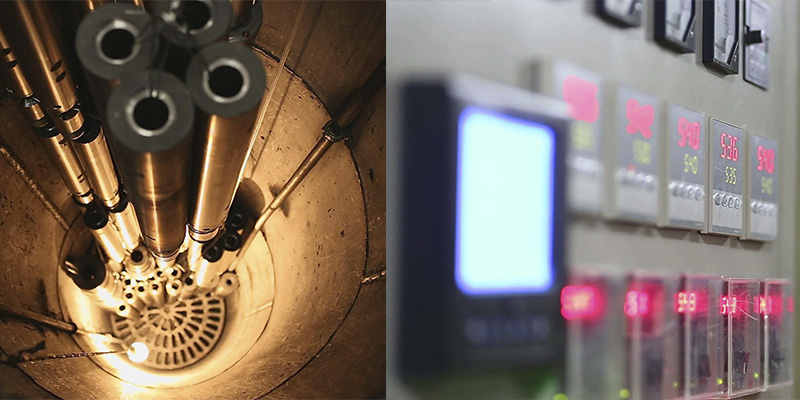

Automatic CNC lathe, milling machine equipment, deep hole boring machine, up to 10m depth nitriding and automatic heat treatment equipment;

Professional operators to ensure the accuracy of each process;

Various mixing heads design to meet the plasticizing requirements of different plastics.



Application

General plastics & engineering plastics with below 10% glass fibre filling.

GET FREE QUOTE
  • Description
  • Feedback
  • Technical Parameters

    Product Name

    Nitrided Barrel

    Material

    JYN1

    Suitable Machine

    Injection / Extrusion / Blowing

    Available Size

    Φ < 500mm, L < 8,000mm

    Process Method

    Gas or Plasma Nitriding

    Control System

    Computer Control

    Surface Hardness

    950-1000HV

    Nitriding period

    120 hours nitriding process

    Effective Nitriding Depth

    0.3 - 0.5mm

    Max. Nitriding Depth

    0.6 - 0.8mm

    Surface Roughness

    < Ra 0.8

    Screw Straightness

     < 0.02mm/m
