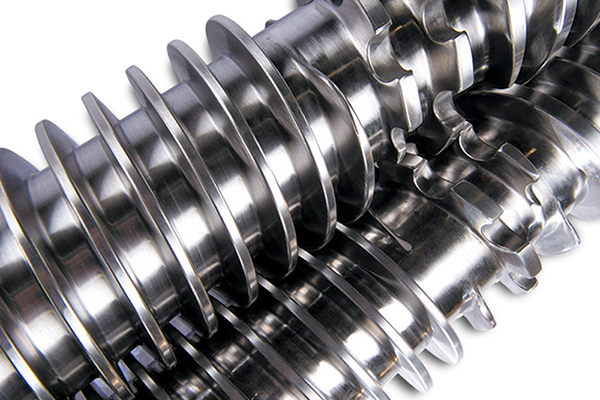

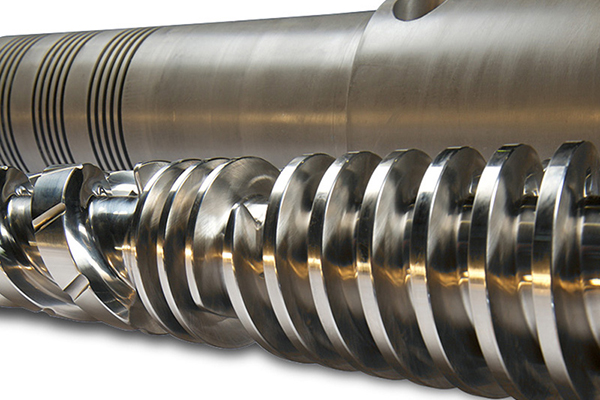

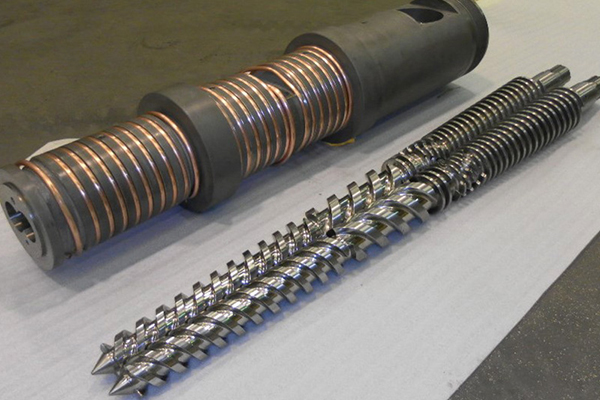

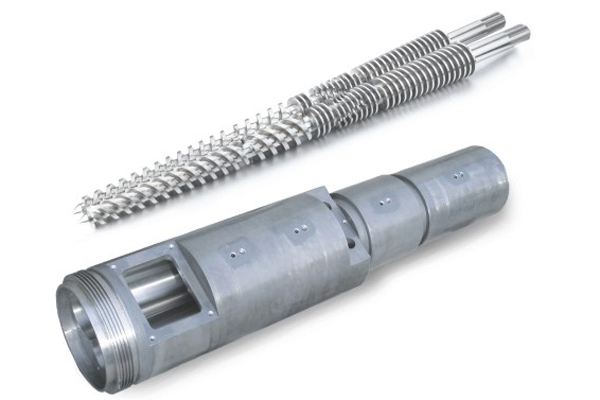

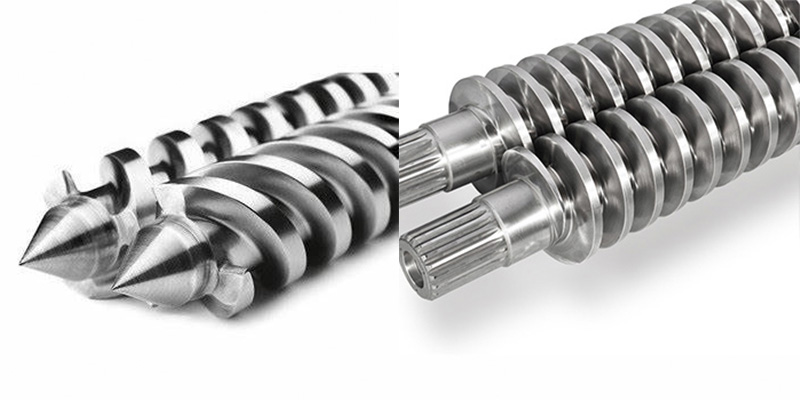

Conical Twin Screw Barrel

Conical Twin Screw Barrel

Advantage

  1. Unique technical design with larger output
  2. Advanced equipment with finest machining
  3. Perfect match of tolerance



Applications

Suitable for PVC pipes, profiles, sheets and extrusion foaming products.

Suitable for PE, PP corrugated pipe extrusion.



  • Description
  • Feedback
  • Technical Parameters

    Product Name

    Conical Twin Screw Barre

    Base Material

    JYN1

    Available Size

    Φ35 - 188mm, L < 2,500mm

    Process Method

    Nitrided or bimetallic

    Size and capacity

    Here is list of our general design data, which may be updated in some different circumstance.

    Specification (d / D)

    Working Length (mm)

    Rotate Speed (rpm)

    Capacity (kg/h)

    Φ35/75

    810

    5-50

    40-70

    Φ45/90

    990

    5-45

    50-80

    Φ45/100

    990

    5-45

    60-90

    Φ48/112

    1104

    4-45

    70-100

    Φ50/105

    1045

    4-45

    100-150

    Φ51/105

    1220

    4-45

    100-150

    Φ55/110

    1220

    4-40

    120-180

    Φ55/120

    1230

    4-40

    130-180

    Φ58/126

    1320

    4-40

    140-200

    Φ60/125

    1320

    4-40

    150-200

    Φ65/120

    1440

    4-40

    200-250

    Φ65/132

    1440

    4-40

    200-250

    Φ68/146

    1550

    4-40

    220-300

    Φ80/143

    1800

    4-35

    300-360

    Φ80/156

    1800

    4-35

    300-360

    Φ92/188

    2000

    3-35

    400-500
